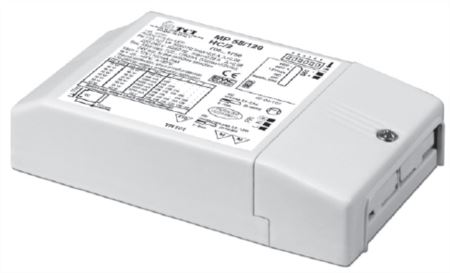

MP 55/120 HC/2
127154
![127154](/images/6128/2548/450x450/nocrop/enlarge/MP55_120.jpg)
€ 47,73
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
700 mA
220-240 V = Output power
31 W
110-127 V =
31 W
Current
900 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
46 W
110-127 V =
46 W
Current
1200 mA
220-240 V = Output power
52 W
110-127 V =
50 W
Current
1400 mA
220-240 V = Output power
55 W
110-127 V =
50 W
Current
1600 mA
220-240 V = Output power
55 W
110-127 V =
50 W
Current
1750 mA
220-240 V = Output power
55 W
110-127 V =
50 W
Constant Voltage (LED STRIP)
Current
24 V
220-240 V = Output power
42 W
110-127 V =
42 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
12 V AUX. output
Approvals:
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
90 mm
Size:
129 x 30 x 76 mm
last update:
10/14/2022
Output voltage (min/max)
700 mA
2...44
900 mA
2...44
1050 mA
2...44
1200 mA
2...44
1400 mA
2...39
1600 mA
2...34
1750 mA
2...31
