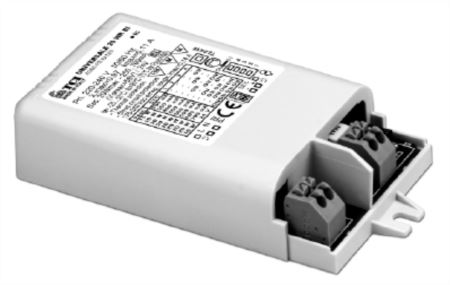

UNIVERSALE 20 WR BI

127142

127142
€ 25,33
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
277 V
Constant Current
Current
250 mA
220-240 V = Output power
13 W
110-127 V =
13 W
Current
350 mA
220-240 V = Output power
19 W
110-127 V =
19 W
Current
400 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Current
450 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Current
500 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Current
550 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Current
600 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Current
700 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Constant Voltage (LED STRIP)
Current
24 V
220-240 V = Output power
16 W
110-127 V =
16 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
Suitable for Household and similar electrical appliances
Approvals:
KEMAKEUR
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
100 x 22 x 52 mm
last update:
6/5/2024
Output voltage (min/max)
250 mA
10...54
350 mA
2...54
400 mA
2...50
450 mA
2...44
500 mA
2...40
550 mA
2...37
600 mA
2...34
700 mA
2...29
