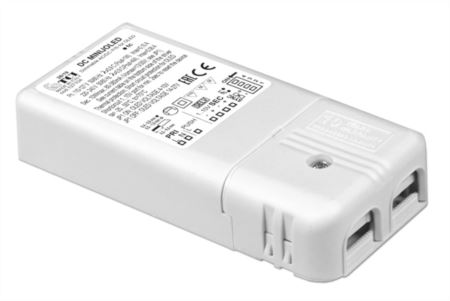

DC MINI JOLED
127104
€ 36,60
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
80 mA
220-240 V = Output power
2.2 W
Current
100 mA
220-240 V = Output power
2.7 W
Current
120 mA
220-240 V = Output power
3.3 W
Current
140 mA
220-240 V = Output power
3.8 W
Current
160 mA
220-240 V = Output power
4.3 W
Current
180 mA
220-240 V = Output power
4.9 W
Current
200 mA
220-240 V = Output power
5.4 W
Current
220 mA
220-240 V = Output power
6 W
Current
240 mA
220-240 V = Output power
6.5 W
Current
260 mA
220-240 V = Output power
7 W
Current
280 mA
220-240 V = Output power
7.6 W
Current
300 mA
220-240 V = Output power
8.1 W
Current
320 mA
220-240 V = Output power
8.7 W
Current
340 mA
220-240 V = Output power
9.2 W
Current
360 mA
220-240 V = Output power
9.7 W
Current
380 mA
220-240 V = Output power
10.3 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
Suitable for OLED
Approvals:
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
55 mm
Size:
111 x 22 x 52 mm
last update:
10/14/2022
Output voltage (min/max)
80 mA
4...27
100 mA
4...27
120 mA
4...27
140 mA
4...27
160 mA
4...27
180 mA
4...27
200 mA
4...27
220 mA
4...27
240 mA
4...27
260 mA
4...27
280 mA
4...27
300 mA
4...27
320 mA
4...27
340 mA
4...27
360 mA
4...27
380 mA
4...27
