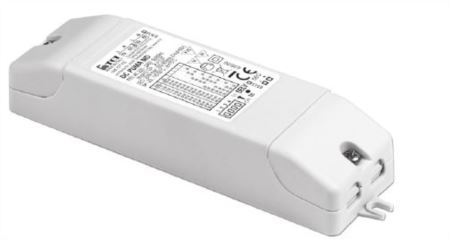

PUMA MD 20
127102
€ 30,16
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
11 W
Current
300 mA
220-240 V = Output power
13 W
Current
350 mA
220-240 V = Output power
15 W
Current
400 mA
220-240 V = Output power
17 W
Current
450 mA
220-240 V = Output power
19 W
Current
500 mA
220-240 V = Output power
20 W
Current
550 mA
220-240 V = Output power
20 W
Current
600 mA
220-240 V = Output power
20 W
Current
650 mA
220-240 V = Output power
20 W
Current
700 mA
220-240 V = Output power
20 W
Dimming:
PHASE CUT / IGBT - TRIAC
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
LOOPING on PRIMARY SIDE
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
48 mm
Size:
140 x 26 x 38 mm
last update:
5/15/2024
Output voltage (min/max)
250 mA
7...44
300 mA
7...44
350 mA
7...44
400 mA
7...43
450 mA
7...43
500 mA
7...40
550 mA
7...36
600 mA
7...25
650 mA
7...24
700 mA
7...22
