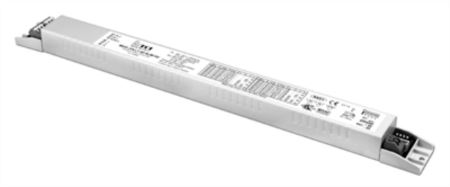

T-LED 80/350 DALI SLIM
127085
€ 87,78
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
140 mA
220-240 V = Output power
35 W
Current
155 mA
220-240 V = Output power
38 W
Current
170 mA
220-240 V = Output power
42,5 W
Current
185 mA
220-240 V = Output power
46 W
Current
200 mA
220-240 V = Output power
50 W
Current
215 mA
220-240 V = Output power
53,5 W
Current
230 mA
220-240 V = Output power
57,5 W
Current
245 mA
220-240 V = Output power
61 W
Current
260 mA
220-240 V = Output power
65 W
Current
275 mA
220-240 V = Output power
68,5 W
Current
290 mA
220-240 V = Output power
72,5 W
Current
305 mA
220-240 V = Output power
76 W
Current
320 mA
220-240 V = Output power
80 W
Current
335 mA
220-240 V = Output power
80 W
Current
350 mA
220-240 V = Output power
80 W
Dimming:
DALI-1
PUSH (on the Mains)
BILEVEL Function
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
NOT SELV (>120V)
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
EXTERNAL NTC INPUT
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
Plastic case:
Slim
for Built-in
ZHAGA BL3/ZS7
Size:
360 x 21 x 30 mm
last update:
1/1/0001
Output voltage (min/max)
140 mA
30...250
155 mA
30...250
170 mA
30...250
185 mA
30...250
200 mA
30...250
215 mA
30...250
230 mA
30...250
245 mA
30...250
260 mA
30...250
275 mA
30...250
290 mA
30...250
305 mA
30...250
320 mA
30...250
335 mA
30...235
350 mA
30...228
