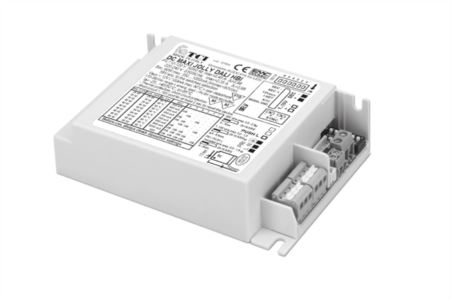

DC MAXI JOLLY DALI HBI
127054
![127054](/images/6128/2772/450x450/nocrop/enlarge/127054_foto-1.jpg)
€ 64,12
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
25 W
110-127 V =
25 W
Current
450 mA
220-240 V = Output power
31 W
110-127 V =
31 W
Current
500 mA
220-240 V = Output power
35 W
110-127 V =
35 W
Current
550 mA
220-240 V = Output power
38 W
110-127 V =
38 W
Current
600 mA
220-240 V = Output power
41 W
110-127 V =
40 W
Current
700 mA
220-240 V = Output power
48 W
110-127 V =
40 W
Current
800 mA
220-240 V = Output power
52 W
110-127 V =
40 W
Current
900 mA
220-240 V = Output power
60 W
110-127 V =
40 W
Current
950 mA
220-240 V = Output power
63 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
65 W
110-127 V =
40 W
Current
1200 mA
220-240 V = Output power
65 W
110-127 V =
40 W
Dimming:
DALI-1
1-10V - 0-10V
PUSH (on the Mains)
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
UL (other than class 2)
CE
EAC
UKCA
Plastic case:
Square
for Built-in
ZHAGA AM2
Size:
110 x 30 x 76 mm
last update:
5/14/2024
Output voltage (min/max)
350 mA
10...70
450 mA
10...70
500 mA
2...70
550 mA
2...69
600 mA
2...68
700 mA
2...68
800 mA
2...66
900 mA
2...66
950 mA
2...66
1050 mA
2...62
1200 mA
2...54
