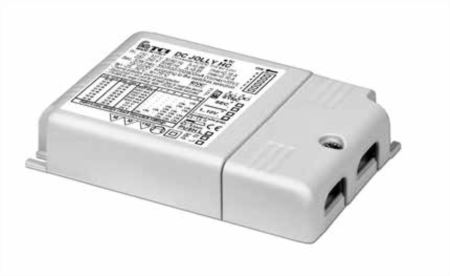

DC JOLLY HC MV
127021
€ 41,25
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
15 W
Current
500 mA
220-240 V = Output power
21 W
Current
550 mA
220-240 V = Output power
23 W
Current
650 mA
220-240 V = Output power
27 W
Current
700 mA
220-240 V = Output power
29 W
Current
750 mA
220-240 V = Output power
31 W
Current
850 mA
220-240 V = Output power
35 W
Current
900 mA
220-240 V = Output power
37 W
Current
1050 mA
220-240 V = Output power
39 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
4/5 kV DM/CM SURGE Input Protection
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
ZHAGA AS1
Minimum cut-out hole diameter:
72 mm
Size:
103 x 21 x 67 mm
last update:
10/14/2022
Output voltage (min/max)
350 mA
2...42
500 mA
2...42
550 mA
2...42
650 mA
2...42
700 mA
2...42
750 mA
2...42
850 mA
2...42
900 mA
2...42
1050 mA
2...37
