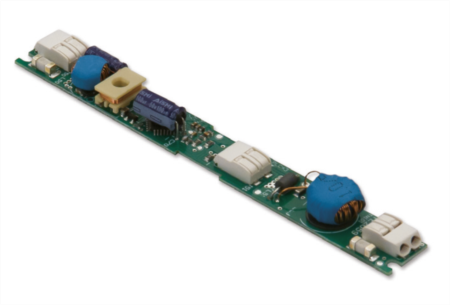

LV TRACK 150-1050 DALI NFC OF
126056OF
€ 51,67
price VAT included
-
+
Features
Rated Voltage
<50vdc>
Constant Current
Current
NFC programming
Current
150 mA
220-240 V = Output power
6 W
Current
200 mA
220-240 V = Output power
8 W
Current
250 mA
220-240 V = Output power
10 W
Current
300 mA
220-240 V = Output power
12 W
Current
350 mA
220-240 V = Output power
14 W
Current
400 mA
220-240 V = Output power
16 W
Current
450 mA
220-240 V = Output power
18 W
Current
500 mA
220-240 V = Output power
20 W
Current
550 mA
220-240 V = Output power
22 W
Current
600 mA
220-240 V = Output power
24 W
Current
650 mA
220-240 V = Output power
26 W
Current
700 mA
220-240 V = Output power
28 W
Current
750 mA
220-240 V = Output power
30 W
Current
800 mA
220-240 V = Output power
32 W
Current
850 mA
220-240 V = Output power
34 W
Current
1000 mA
220-240 V = Output power
40 W
Current
1050 mA
220-240 V = Output power
40 W
Dimming:
DALI-2 (also DALI-1)
FULL PROGRAMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
LOW VOLTAGE INPUT (CL III)
Approvals:
ENEC
UL (class 2)
CE
EAC
UKCA
Plastic case:
Slim
TRACK ADAPTOR 48V
Open Frame (OF-NO CASE)
Size:
125 x 11 x 14 mm
last update:
6/7/2024
