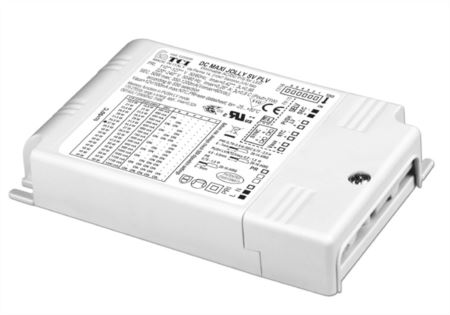

DC MAXI JOLLY SV PLV

125509

125509
€ 72,53
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
18,5 W
110-127 V =
18,5 W
Current
400 mA
220-240 V = Output power
21 W
110-127 V =
21 W
Current
450 mA
220-240 V = Output power
23,5 W
110-127 V =
23,5 W
Current
500 mA
220-240 V = Output power
26,5 W
110-127 V =
26,5 W
Current
550 mA
220-240 V = Output power
29 W
110-127 V =
29 W
Current
600 mA
220-240 V = Output power
31,5 W
110-127 V =
31,5 W
Current
650 mA
220-240 V = Output power
34,5 W
110-127 V =
34,5 W
Current
700 mA
220-240 V = Output power
37 W
110-127 V =
37 W
Current
750 mA
220-240 V = Output power
39,5 W
110-127 V =
39,5 W
Current
800 mA
220-240 V = Output power
42 W
110-127 V =
40 W
Current
850 mA
220-240 V = Output power
45 W
110-127 V =
40 W
Current
900 mA
220-240 V = Output power
47,5 W
110-127 V =
40 W
Current
950 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
1000 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
1100 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
1150 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
1200 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Dimming:
PUSH Low Voltage (PLV)
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AM + PWM (MIXED) IEEE1789-2015
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
12 V AUX. output
Approvals:
KEMAKEUR
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
ZHAGA AM3
Minimum cut-out hole diameter:
84 mm
Size:
124 x 22 x 79 mm
last update:
10/18/2022
Output voltage (min/max)
350 mA
10...53
400 mA
10...53
450 mA
10...53
500 mA
10...53
550 mA
10...53
600 mA
10...53
650 mA
10...53
700 mA
10...53
750 mA
10...53
800 mA
10...53
850 mA
10...53
900 mA
10...53
950 mA
10...52
1000 mA
10...50
1050 mA
10...48
1100 mA
10...45
1150 mA
10...43
1200 mA
10...41
