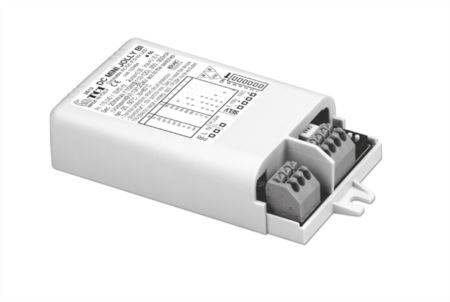

DC MINI JOLLY BI
125404
![125404](/images/6128/2629/450x450/nocrop/enlarge/125404_foto.jpg)
€ 33,67
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
13 W
110-127 V =
13 W
Current
300 mA
220-240 V = Output power
15 W
110-127 V =
15 W
Current
350 mA
220-240 V = Output power
18 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
650 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
750 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
850 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
900 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
12 V
220-240 V = Output power
10 W
110-127 V =
10 W
Current
24 V
220-240 V = Output power
20 W
110-127 V =
15 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AM + PWM (MIXED) IEEE1789-2015
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
Suitable for Household and similar electrical appliances
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
108 x 22 x 52 mm
last update:
5/14/2024
Output voltage (min/max)
250 mA
20...53
300 mA
20...52
350 mA
15...50
400 mA
15...50
450 mA
5...45
500 mA
5...40
550 mA
3...37
600 mA
3...34
650 mA
3...31
700 mA
3...29
750 mA
3...27
850 mA
3...24
900 mA
3...23
