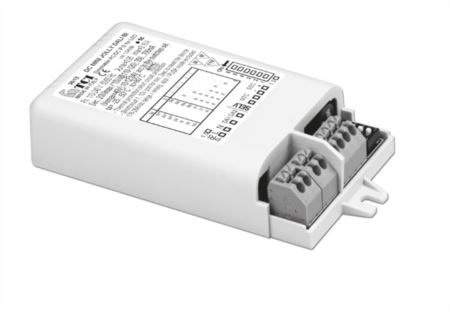

DC MINI JOLLY DALI BI

125403BI

125403BI
€ 37,43
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
12 W
110-127 V =
12 W
Current
350 mA
220-240 V = Output power
17 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
19 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
24 V
220-240 V = Output power
16 W
110-127 V =
15 W
Dimming:
DALI-2 (also DALI-1)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AM + PWM (MIXED) IEEE1789-2015
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
108 x 22 x 52 mm
last update:
5/14/2024
Output voltage (min/max)
250 mA
15...49
350 mA
10...49
400 mA
5...49
450 mA
5...45
500 mA
5...40
550 mA
3...36
600 mA
3...33
700 mA
3...28
