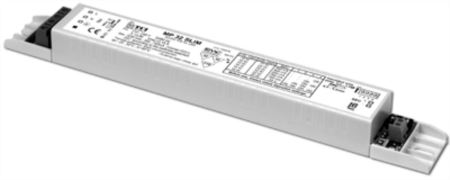

MP 32 SLIM

123676

123676
€ 29,57
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
13 W
110-127 V =
13 W
Current
350 mA
220-240 V = Output power
18 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
21 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
23 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
26 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
28 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
30 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
24 V
220-240 V = Output power
17 W
110-127 V =
15 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
Approvals:
KEMAKEUR
ENEC
CE
EAC
UKCA
Plastic case:
Slim
for Built-in
IP 67 with linear case 180066/390
Size:
237 x 21 x 30 mm
last update:
1/3/2024
Output voltage (min/max)
250 mA
2...53
350 mA
2...53
400 mA
2...52
450 mA
2...52
500 mA
2...52
550 mA
2...52
600 mA
2...51
700 mA
2...46
