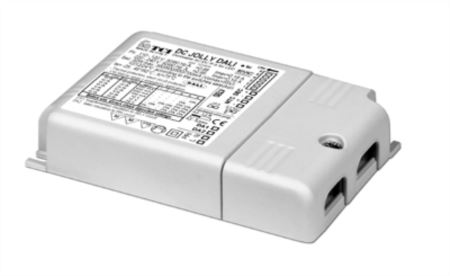

DC JOLLY DALI

123424

123424
€ 43,49
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
12 W
110-127 V =
12 W
Current
300 mA
220-240 V = Output power
14 W
110-127 V =
14 W
Current
350 mA
220-240 V = Output power
17 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
19 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
22 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
24 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
26 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
29 W
110-127 V =
15 W
Current
650 mA
220-240 V = Output power
31 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
12 V
220-240 V = Output power
10 W
110-127 V =
10 W
Current
24 V
220-240 V = Output power
20 W
110-127 V =
15 W
Dimming:
DALI-1
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
ZHAGA AS1
Minimum cut-out hole diameter:
72 mm
Size:
103 x 21 x 67 mm
last update:
4/20/2021
Output voltage (min/max)
250 mA
10...48
300 mA
10...48
350 mA
5...48
400 mA
5...48
450 mA
5...48
500 mA
5...48
550 mA
3...48
600 mA
3...48
650 mA
3...48
700 mA
3...46
