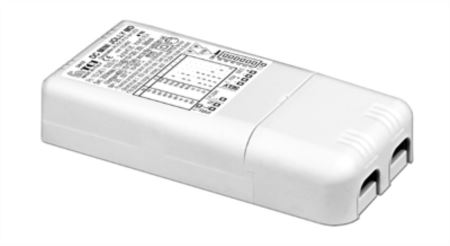

DC MINI JOLLY LC
123401
€ 35,14
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
100 mA
220-240 V = Output power
5,3 W
110-127 V =
5,3 W
Current
140 mA
220-240 V = Output power
7,5 W
110-127 V =
7,5 W
Current
180 mA
220-240 V = Output power
9,5 W
110-127 V =
9,5 W
Current
220 mA
220-240 V = Output power
12 W
110-127 V =
12 W
Current
260 mA
220-240 V = Output power
14 W
110-127 V =
14 W
Current
300 mA
220-240 V = Output power
16 W
110-127 V =
15 W
Current
340 mA
220-240 V = Output power
18 W
110-127 V =
15 W
Current
380 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
24 V
220-240 V = Output power
9 W
110-127 V =
9 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
Suitable for Household and similar electrical appliances
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
55 mm
Size:
111 x 22 x 52 mm
last update:
2/21/2019
Output voltage (min/max)
100 mA
20...53
140 mA
10...53
180 mA
2...53
220 mA
2...53
260 mA
2...53
300 mA
2...53
340 mA
2...53
380 mA
2...53
