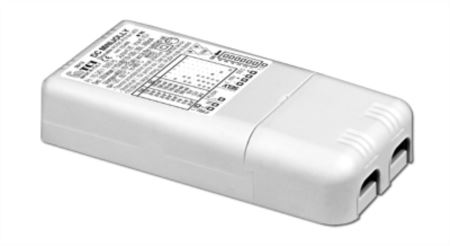

DC MINI JOLLY

123400

123400
€ 33,67
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
15 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
850 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
900 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
12 V
220-240 V = Output power
10 W
110-127 V =
10 W
Current
24 V
220-240 V = Output power
20 W
110-127 V =
15 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
Suitable for Household and similar electrical appliances
Approvals:
KEMAKEUR
ENEC
UL (class 2)
CCC
RCM
CE
EAC
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
55 mm
Size:
111 x 22 x 52 mm
last update:
5/31/2022
Output voltage (min/max)
350 mA
2...43
500 mA
2...40
550 mA
2...36
700 mA
2...29
850 mA
2...24
900 mA
2...22
