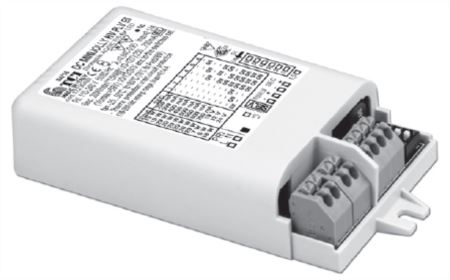

DC MINI JOLLY HV PLV BI
123394BI
€ 38,50
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
250 mA
220-240 V = Output power
13 W
110-127 V =
13 W
Current
350 mA
220-240 V = Output power
17 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
24 V
220-240 V = Output power
16 W
110-127 V =
15 W
Current
28 V
220-240 V = Output power
20 W
110-127 V =
15 W
Dimming:
PUSH Low Voltage (PLV)
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
Suitable for Household and similar electrical appliances
Approvals:
KEMAKEUR
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
for Built-in
Size:
108 x 22 x 52 mm
last update:
4/29/2022
Output voltage (min/max)
250 mA
15...53
350 mA
5...52
400 mA
5...50
450 mA
2...44
500 mA
2...40
550 mA
2...37
600 mA
2...34
700 mA
2...29
