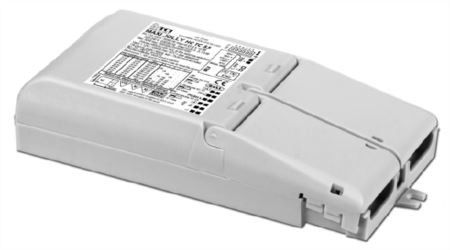

DC MAXI JOLLY HC TC

123168

123168
€ 54,96
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
1050 mA
220-240 V = Output power
45 W
110-127 V =
40 W
Current
1200 mA
220-240 V = Output power
52 W
110-127 V =
40 W
Current
1400 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Current
1600 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Current
1750 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Current
2100 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
LOOPING on PRIMARY SIDE
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
88 mm
Size:
170 x 35 x 83 mm
last update:
10/17/2022
Output voltage (min/max)
1050 mA
2...44
1200 mA
2...44
1400 mA
2...39
1600 mA
2...35
1750 mA
2...30
2100 mA
2...26
