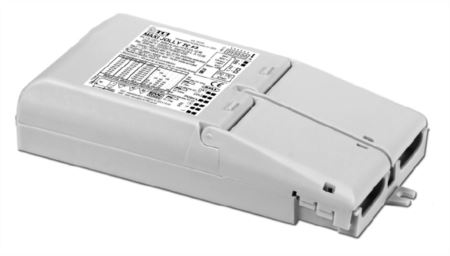

DC MAXI JOLLY TC
123162
![123162](/images/6128/2660/450x450/nocrop/enlarge/123162_foto.jpg)
€ 53,42
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
300 mA
220-240 V = Output power
15 W
110-127 V =
15 W
Current
350 mA
220-240 V = Output power
17 W
110-127 V =
17 W
Current
400 mA
220-240 V = Output power
20 W
110-127 V =
20 W
Current
450 mA
220-240 V = Output power
22 W
110-127 V =
22 W
Current
500 mA
220-240 V = Output power
25 W
110-127 V =
25 W
Current
550 mA
220-240 V = Output power
27 W
110-127 V =
27 W
Current
600 mA
220-240 V = Output power
30 W
110-127 V =
30 W
Current
650 mA
220-240 V = Output power
32 W
110-127 V =
32 W
Current
700 mA
220-240 V = Output power
35 W
110-127 V =
35 W
Current
750 mA
220-240 V = Output power
37 W
110-127 V =
37 W
Current
800 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
850 mA
220-240 V = Output power
42 W
110-127 V =
40 W
Current
900 mA
220-240 V = Output power
45 W
110-127 V =
40 W
Current
950 mA
220-240 V = Output power
47 W
110-127 V =
40 W
Current
1000 mA
220-240 V = Output power
49 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
51 W
110-127 V =
40 W
Current
1100 mA
220-240 V = Output power
53 W
110-127 V =
40 W
Current
1150 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Current
1200 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Dimming:
1-10V - 0-10V
PUSH (on the Mains)
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
LOOPING on PRIMARY SIDE
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
88 mm
Size:
170 x 35 x 83 mm
last update:
10/14/2022
Output voltage (min/max)
300 mA
5...52
350 mA
5...52
400 mA
5...50
450 mA
5...50
500 mA
2...50
550 mA
2...50
600 mA
2...50
650 mA
2...50
700 mA
2...50
750 mA
2...50
800 mA
2...50
850 mA
2...50
900 mA
2...50
950 mA
2...50
1000 mA
2...49
1050 mA
2...49
1100 mA
2...49
1150 mA
2...48
1200 mA
2...46
