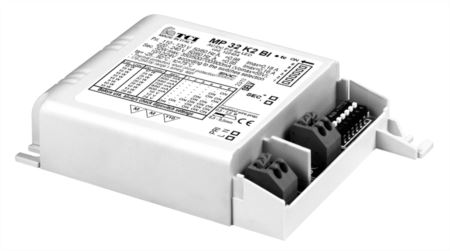

MP 32 BI
122454
![122454](/images/6128/2509/450x450/nocrop/enlarge/122454_MP_32_K2_BI.jpg)
€ 26,21
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
17 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
24 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
25 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Current
850 mA
220-240 V = Output power
33 W
110-127 V =
15 W
Current
900 mA
220-240 V = Output power
33 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
10 V
220-240 V = Output power
10 W
110-127 V =
10 W
Current
12 V
220-240 V = Output power
13 W
110-127 V =
13 W
Current
24 V
220-240 V = Output power
20 W
110-127 V =
15 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
Square
for Built-in
ZHAGA AS1
Size:
90 x 21 x 67 mm
last update:
3/11/2024
Output voltage (min/max)
350 mA
2...47
500 mA
2...47
550 mA
2...47
700 mA
2...46
850 mA
2...24
900 mA
2...22
