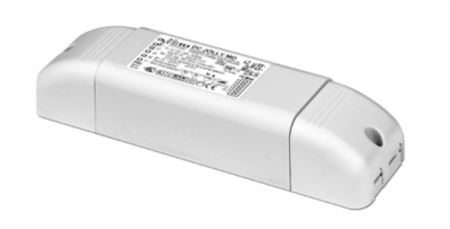

DC JOLLY MD LC

122262

122262
€ 37,64
price VAT included

-
+

Features

Rated Voltage
220...240 V
Constant Current
Current
150 mA
220-240 V = Output power
7,2 W
Current
200 mA
220-240 V = Output power
9,5 W
Current
250 mA
220-240 V = Output power
12 W
Current
300 mA
220-240 V = Output power
14,5 W
Current
350 mA
220-240 V = Output power
17 W
Current
400 mA
220-240 V = Output power
19,5 W
Current
450 mA
220-240 V = Output power
21,5 W
Current
500 mA
220-240 V = Output power
24 W
Constant Voltage (LED STRIP)
Current
12 V
220-240 V = Output power
6 W
Current
24 V
220-240 V = Output power
12 W
Current
28 V
220-240 V = Output power
14 W
Dimming:
PUSH (on the Mains)
PHASE CUT / IGBT - TRIAC
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
LOOPING on PRIMARY SIDE
Approvals:
KEMAKEUR
ENEC
CCC
RCM
CE
EAC
IRAM
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
56 mm
Size:
166 x 34 x 46 mm
last update:
5/15/2024
Output voltage (min/max)
150 mA
2...48
200 mA
2...48
250 mA
2...48
300 mA
2...48
350 mA
2...48
400 mA
2...48
450 mA
2...48
500 mA
2...48
