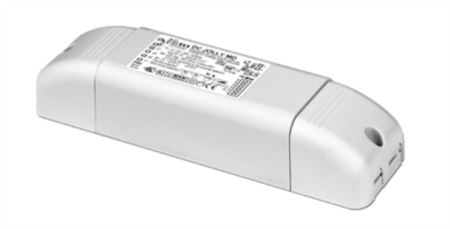

DC JOLLY MD
122260
€ 37,64
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
17 W
Current
500 mA
220-240 V = Output power
24 W
Current
550 mA
220-240 V = Output power
25 W
Current
700 mA
220-240 V = Output power
32 W
Current
750 mA
220-240 V = Output power
32 W
Constant Voltage (LED STRIP)
Current
12 V
220-240 V = Output power
10 W
Current
24 V
220-240 V = Output power
20 W
Current
28 V
220-240 V = Output power
22 W
Dimming:
PUSH (on the Mains)
PHASE CUT / IGBT - TRIAC
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
LOOPING on PRIMARY SIDE
Suitable for Household and similar electrical appliances
Approvals:
KEMAKEUR
ENEC
CCC
RCM
CE
EAC
IRAM
UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
56 mm
Size:
166 x 34 x 46 mm
last update:
5/15/2024
Output voltage (min/max)
350 mA
2...47
500 mA
2...47
550 mA
2...47
700 mA
2...46
750 mA
2...43
