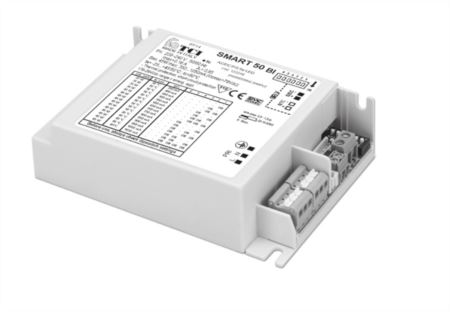

SMART 50 BI
122219
€ 38,00
price VAT included
-
+
Features
Rated Voltage
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
27 W
Current
400 mA
220-240 V = Output power
31 W
Current
450 mA
220-240 V = Output power
35 W
Current
500 mA
220-240 V = Output power
39 W
Current
550 mA
220-240 V = Output power
43 W
Current
600 mA
220-240 V = Output power
45 W
Current
650 mA
220-240 V = Output power
47 W
Current
700 mA
220-240 V = Output power
50 W
Current
750 mA
220-240 V = Output power
50 W
Current
800 mA
220-240 V = Output power
50 W
Current
850 mA
220-240 V = Output power
50 W
Current
900 mA
220-240 V = Output power
50 W
Current
950 mA
220-240 V = Output power
50 W
Current
1000 mA
220-240 V = Output power
50 W
Current
1050 mA
220-240 V = Output power
50 W
Dimming:
NOT DIMMABLE
Additional technical features:
ACTIVE PFC (pf>0.9)
SELV >60/< />
EXTERNAL NTC INPUT
Suitable for AUTOMATIC WIRING MACHINE
Approvals:
KEMAKEUR
ENEC
CE
EAC
UKCA
Plastic case:
Square
for Built-in
ZHAGA AM2
Size:
110 x 30 x 76 mm
last update:
4/4/2024
Output voltage (min/max)
350 mA
10...78
400 mA
10...78
450 mA
10...78
500 mA
10...78
550 mA
10...78
600 mA
10...75
650 mA
10...72
700 mA
10...71
750 mA
10...66
800 mA
10...62
850 mA
10...59
900 mA
10...55
950 mA
10...53
1000 mA
10...50
1050 mA
10...48
