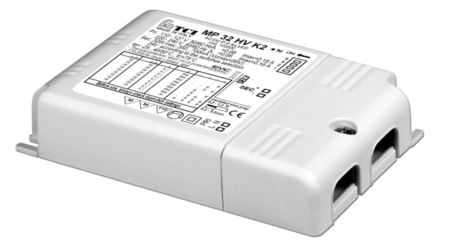

MP 32 HV K2
122202
€ 24,85
price VAT included
-
+
Features
Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
19 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
22 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
24 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
27 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
30 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Current
650 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
32 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Current
24 V
220-240 V = Output power
17 W
110-127 V =
10 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
WIDE RANGE INPUT VOLTAGE
4/5 kV DM/CM SURGE Input Protection
Approvals:
KEMAKEUR
ENEC
CCC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
72 mm
Size:
103 x 21 x 67 mm
last update:
3/11/2024
Output voltage (min/max)
350 mA
2...54
400 mA
2...54
450 mA
2...54
500 mA
2...54
550 mA
2...54
600 mA
2...53
650 mA
2...49
700 mA
2...46
