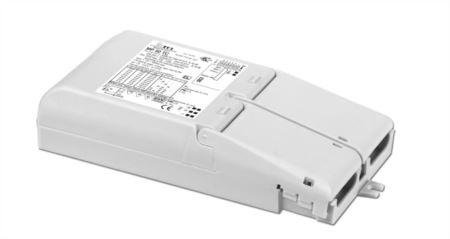

MP 50 TC

122160

122160
€ 44,01
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
350 mA
220-240 V = Output power
25 W
110-127 V =
25 W
Current
400 mA
220-240 V = Output power
28 W
110-127 V =
28 W
Current
450 mA
220-240 V = Output power
32 W
110-127 V =
32 W
Current
500 mA
220-240 V = Output power
35 W
110-127 V =
35 W
Current
550 mA
220-240 V = Output power
38 W
110-127 V =
38 W
Current
600 mA
220-240 V = Output power
40 W
110-127 V =
40 W
Current
650 mA
220-240 V = Output power
45 W
110-127 V =
40 W
Current
700 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
750 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
800 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
850 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
900 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
950 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Current
1050 mA
220-240 V = Output power
50 W
110-127 V =
40 W
Dimming:
NOT DIMMABLE
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV >60/< />
WIDE RANGE INPUT VOLTAGE
LOOPING on PRIMARY SIDE
Approvals:
KEMAKEUR
ENEC
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
88 mm
Size:
169 x 35 x 83 mm
last update:
10/14/2022
Output voltage (min/max)
350 mA
2...70
400 mA
2...70
450 mA
2...70
500 mA
2...70
550 mA
2...70
600 mA
2...70
650 mA
2...70
700 mA
2...70
750 mA
2...66
800 mA
2...62
850 mA
2...58
900 mA
2...55
950 mA
2...52
1050 mA
2...47
