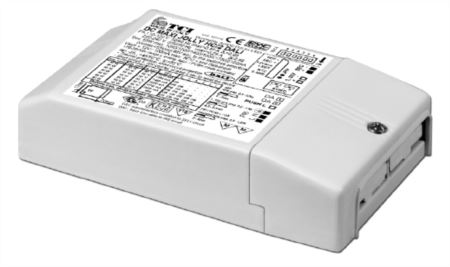

DC MAXI JOLLY HC/2 DALI

123314

123314
€ 89,91
price VAT included

-
+

Features

Rated Voltage
110...127 V
220...240 V
Constant Current
Current
1050 mA
220-240 V = Output power
45 W
110-127 V =
40 W
Current
1200 mA
220-240 V = Output power
52 W
110-127 V =
40 W
Current
1400 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Current
1600 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Current
1750 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Current
2100 mA
220-240 V = Output power
55 W
110-127 V =
40 W
Constant Voltage (LED STRIP)
Current
48 V
220-240 V = Output power
55 W
110-127 V =
40 W
Dimming:
DALI-2 (also DALI-1)
1-10V - 0-10V
PUSH (on the Mains)
SYNC/PWM INPUT
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
12 V AUX. output
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR
ENEC
UL (class 2)
RCM
CE
EAC
UKCA
Plastic case:
Square
IP 20 (Independent Use)
Minimum cut-out hole diameter:
90 mm
Size:
129 x 30 x 76 mm
last update:
10/18/2022
Output voltage (min/max)
1050 mA
2...44
1200 mA
2...44
1400 mA
2...43
1600 mA
2...38
1750 mA
2...35
2100 mA
2...29
